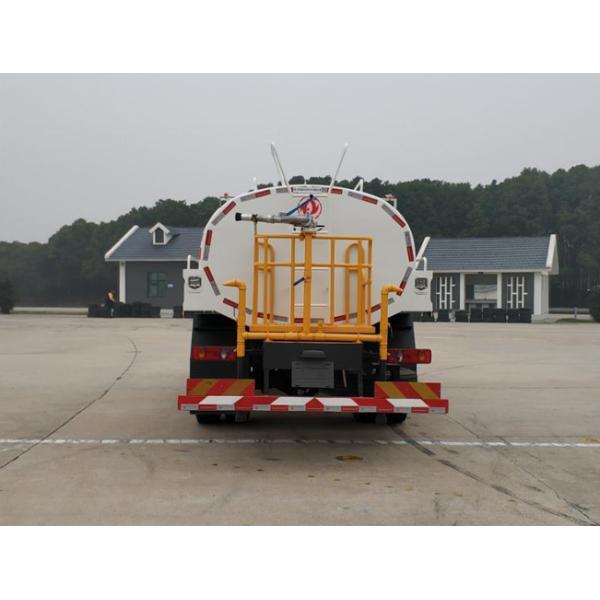

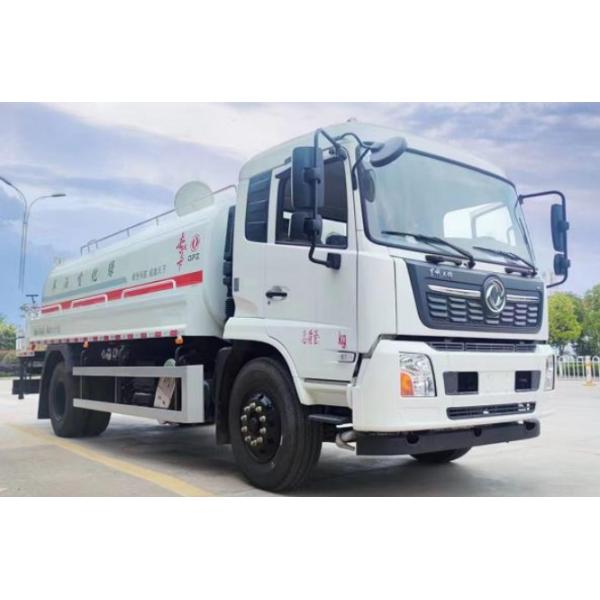

Water Sprinkler Truck Multifunction Environmentally Friendly
Feature:
1 , Water Sprinkler Truck is equipped with a Dongfeng Tianjin chassis, featuring powerful engine, thickened water supply pipeline, wide flushing width, and long water cannon range.
2 , Water Sprinkler Truck body has a patented appearance, with the concealed hose box seamlessly integrated with the tank, presenting a beautiful and practical design.

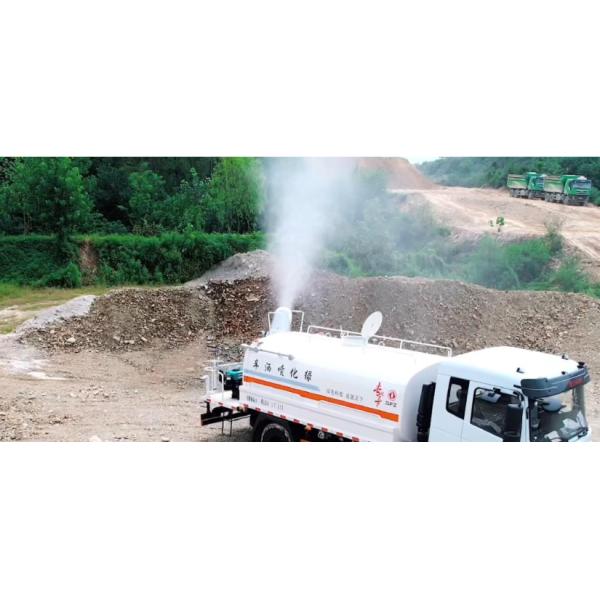

3, The basic configuration is complete, the operation is simple, and all functions such as front spray, rear watering, and side spraying are available. Optional dust suppression fog cannons are also available.
4, The weld seams of the tank body are welded by automated equipment, ensuring good weld formation quality and high strength.
5 ,It adopts a fully assembled process structure, avoiding water ingress corrosion in cavities and layers, facilitating disassembly and maintenance.
6, It uses the spray peening and baking paint process, with high paint adhesion, corrosion resistance, and high surface glossiness.
Applicatioin:

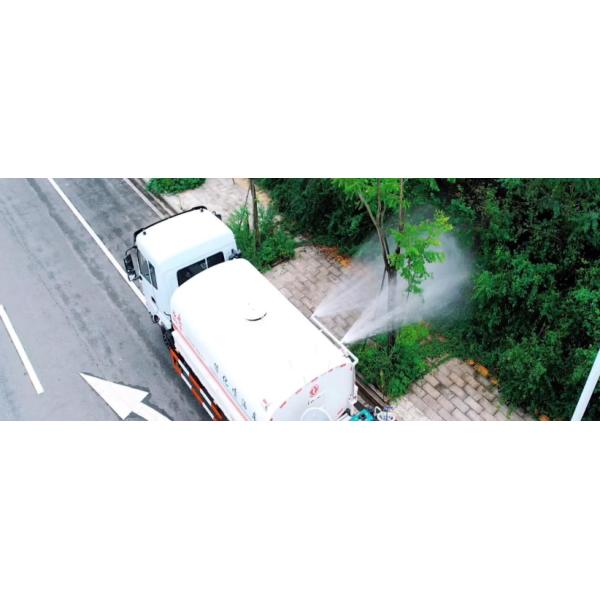

1, Water Sprinkler Truck:Equipped with adjustable water jets (direct spray, atomization, showerhead and other modes), it can water street trees, lawns and park vegetation, and at the same time wash away the dust on the surface of plants
2, Water Sprinkler Truck:In arid areas, it is used for transporting domestic water or irrigating farmland to alleviate the shortage of water resources.
Specification :
| Length* width* height | 000,8400,8800,9400,8630×2550
×2960,3100,3350 | complete vehicle kerb mass | 7650 kg |
| wheel base | 4500/4700(mm) | maximum total mass | 18000kg |
| Front/rear suspension | 1400/2500,1430/2470,1400/2300,1430/2270,1
400/2900,1430/2870,1400/2700,1430/2670,14
00/2730,1430/2700,1400/2530,1430/2500 | Effective volume of the tank | Total capacity of the tank: 11.21 cubic meters, effective volume of the tank: 10.68 cubic meters |
| approach angle | 17 | Total capacity of the tank: 11.21 cubic meters. The tank has Effect | 5000×2190×1620 (with 4500mm wheelbase)
5300×2160×1570 (with 4700mm wheelbase) |
| departure angle | 13 | Spray width | 8 lanes ≥ 30 |
| Post-impact clearance from the ground (empty) Carry | ≦500 | Water sprinkling volume | 0.2-2.0 |
| Maximum speed (with full load) | 89 | The maximum range of the water cannon | ≧33 |
